Features
-
DEDICATED PANORAMIC

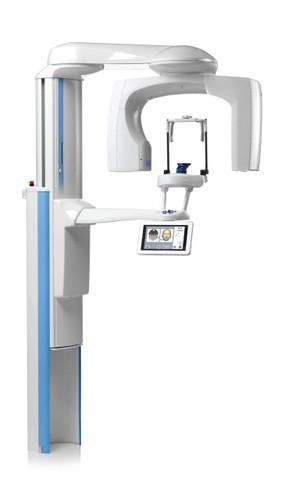

Planmeca ProMax S3 3D Plus panoramic and cone beam system delivers exceptional quality traditional panoramic x-ray images each and every time.
-
PANORAMIC
The robust Planmeca ProMax S3 3D Plus panoramic and cone beam system features the following panoramic programs: standard, pediatric, lateral double TMJ, PA double TMJ, PA rotational sinus. Optional advanced programs include: horizontal segmenting, orthogonal, interproximal angulation, bitewings, lateral-PA double TMJ, PA multi-angle TMJ, lateral multi-angle TMJ, non-rotational sinus, and more.
-
SCARA TECHNOLOGY
With its advanced, exclusive robotic SCARA (Selectively Compliant Articulated Robot Arm) Technology, the Planmeca ProMax S3 3D Plus panoramic and cone beam system delivers flexible, precise, and complex movements required for rotational maxillofacial digital dental imaging.
-
PEDO-FRIENDLY
Planmeca ProMax S3 3D Plus panoramic and cone beam system features a child (pediatric) mode for each standard and optional program to reduce exposure area and minimize patient dose.
-
BITEWING PROGRAM
Add the optional bitewings program to Planmeca ProMax S3 3D Plus system to replace conventional intraoral bitewing dental radiography. (NOTE: subject to availability)
-
HIGH-QUALITY IMAGES
Planmeca ProMax S3 3D Plus panoramic and cone beam system delivers advanced panoramic technology, including an adjustable focal trough for anatomically correct images, enhanced imaging geometry that eliminates redundant shadows and ghost images, Automatic Cervical Vertebrae (ACV) to minimize the shadow of the cervical vertebrae, and optional Automatic Exposure Control (AEC) to measure the patient's radiation transparency and automatically correct exposure values in each dental radiograph.
-
CEPH UPGRADEABLE
Add a cephalometric x-ray attachment to Planmeca ProMax 3D Plus panoramic and cone beam system as your practice needs evolve. (NOTE: subject to availability)
-
CONE BEAM 3D
Planmeca ProMax S3 3D Plus panoramic and cone beam system combines high-quality two-dimensional imaging with state-of-the-art cone beam technology to support a wide range of dental and specialty exams, including: implantology, endodontics, periodontics, dental and maxillofacial surgery, TMJ analysis, airway studies, and much more.
-
ADJUSTABLE 3D FOV
Planmeca ProMax S3 3D Plus panoramic and cone beam system features a wide selection of cone beam 3D volume sizes and configurations, from small (4x5 cm) to extended field of view (20x17 cm) - and almost any size in between, depending on the system and options selected. (NOTE: subject to availability)
-
FOCUSED 3D FOV
The system's focused field of view (4x5 cm) is ideal for single implants, endodontics, molar studies, or planning third molar extractions.
-
MEDIUM 3D FOV
The medium fields of view, such as 8x8 cm, 10x10 cm and other configurations, are ideal when the entire dentition, mandible, and maxilla must be captured in a single volume for diagnoses, treatment planning, and case presentation. Select smaller FOV sizes when single views of the mandible or maxilla are sufficient, reducing dose up to 40 percent. Choose the larger 9x16 cm field of view for sinus, dual jaw, and temporal bone dental radiography. (NOTE: subject to availability)
-
HIGH-DEFINITION 3D
High-resolution images (0.075 mm) delivered by the Planmeca ProMax 3D Plus panoramic and cone beam system provide superior visualization of fine dental structures, ideal for endodontics and exams requiring detail and precision.
-
CAD/CAM INTEGRATION
Powered by E4D Technologies, Planmeca's robust CAD/CAM solution can help dentists create and design digital models, share cases via the cloud, integrate with milling technology, and more.
-
MAC-FRIENDLY
Planmeca ProMax S3 3D Plus panoramic and cone beam system works seamlessly with any Mac computer system or network.
-
PREMIUM SYSTEM
One of the premium cone beam products in Planmeca's extraoral imaging portfolio, the ProMax S3 3D Plus panoramic and cone beam system delivers superior image quality, reliability, and ease of use.
-
TWAIN INTEGRATION
Panoramic images captured with the Planmeca ProMax S3 3D Plus panoramic and cone beam system can be easily integrated into almost any digital dental imaging software.
Specifications
- PANORAMIC MODALITY: Included/ Dedicated
- PANORAMIC BITEWINGS: Included (Subject to Availability)
- CEPHALOMETRIC MODALITY: Upgradeable by Manufacturer
- 3D MODALITY: Included/ Adjustable FOV
- 3D FIELD OF VIEW (in CM): 4x5, 8x8, 9x16
- ACTUAL DIMENSIONS: 47"(W) x 54"(D) x 94"(H)
- POWER REQUIREMENTS: 110V/20A
